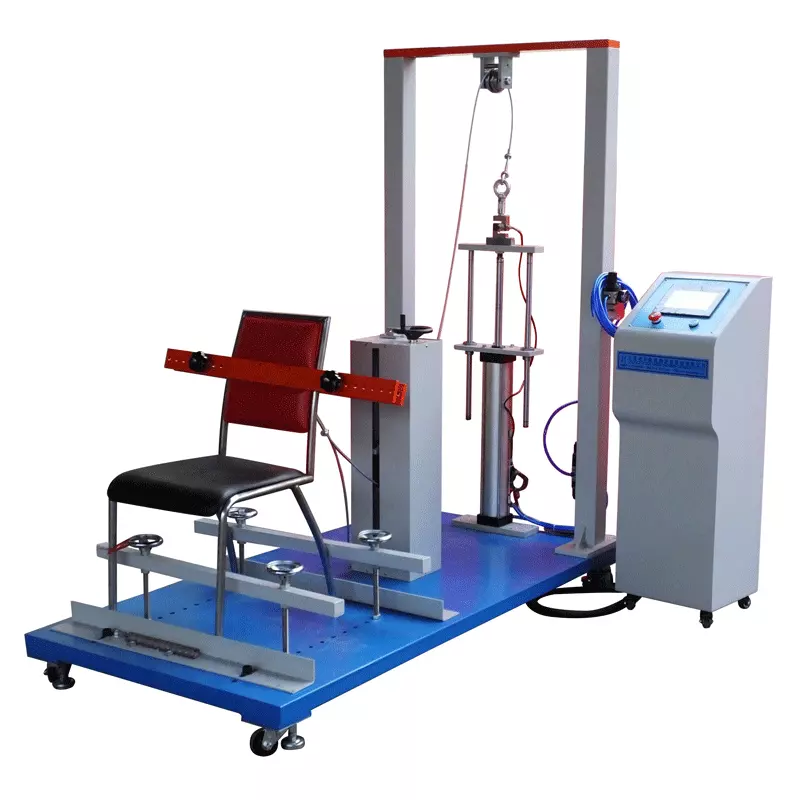

Chair Backrest Fatigue Tester
Machine Dimensions: 2.0 m × 1.00 m × 1.9 m (W × D × H)
Stroke: 800 mm.
Normal Operating Power: Compressed air at 0.7 MPa; power supply: AC 220 V/50 Hz.
Load Setting: Force units (kg, lb, N) can be selected as desired; tensile test force is adjustable from 0 to 200 kg.
Standard Weights: Sandbag weights, 102 kg (one set).
Control Method: PLC control, HMI operation. Test cycle count: 0–999,999 cycles, freely adjustable; the machine automatically stops when the set number of cycles is reached; features power-off memory and hold force duration settings.
